Machine capability test (polymers) - preparation for certification of industrial AM production sites acc. to DIN EN ISO / ASTM 52920

Price by request

The price depends on your buildchamber size and the requested number of specimens.

Contact our expert:

Dipl.-Ing. Jens Groffmann
Projektleiter Additive Manufacturing

Fertigungstechnik Norddeutschland
TÜV NORD Systems GmbH & Co. KG
Große Bahnstr. 31
22525 Hamburg

Telefon: +49 (0) 40 8557-1641
Mobil: +49 (0)160 888 11 44
E-Mail: jgroffmann@tuev-nord.de
www.tuev-nord.com

JETZT PREIS ERFRAGEN

Product information "Machine capability test (polymers) - preparation for certification of industrial AM production sites acc. to DIN EN ISO / ASTM 52920"

The machine capability test is a useful component in the preparation for the certification of industrial additive manufacturing facilities according to DIN EN ISO / ASTM 52920. In the machine capability test, the spatial distribution of the actually achievable mechanical-technological properties within the machine build space is determined. For this purpose, the installation space is divided by a grid into segments, in each of which a test specimen is to be manufactured.

The results of the tensile tests allow these properties to be analyzed and assigned to the individual segments of the build envelope. For visualization purposes, a heat map can be created that shows in color whether predefined limit values have been reached or not. Based on this, the machine can be adjusted. Important parameters for the initial verification as well as the ongoing control of the industrial machine capability are the mechanical-technological properties according to DIN EN ISO 527-1:2019-12:

Determination of the stress-strain diagram
Determination of the strength σ_m [MPa]
Determination of the strain at break ε_b [%]
Indication of the fracture position
E-modulus [GPa]
Test performance at room temperature.

Included Services

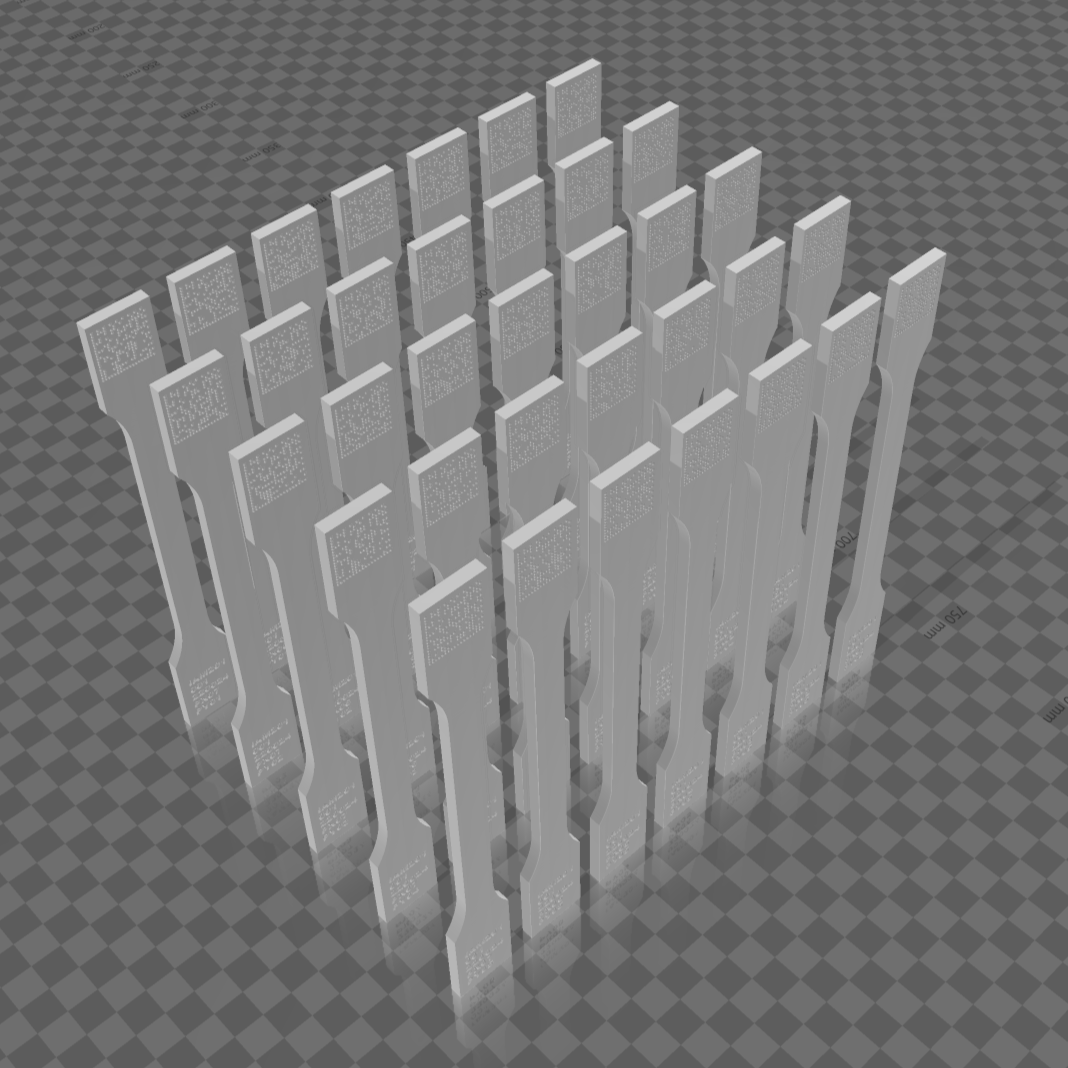

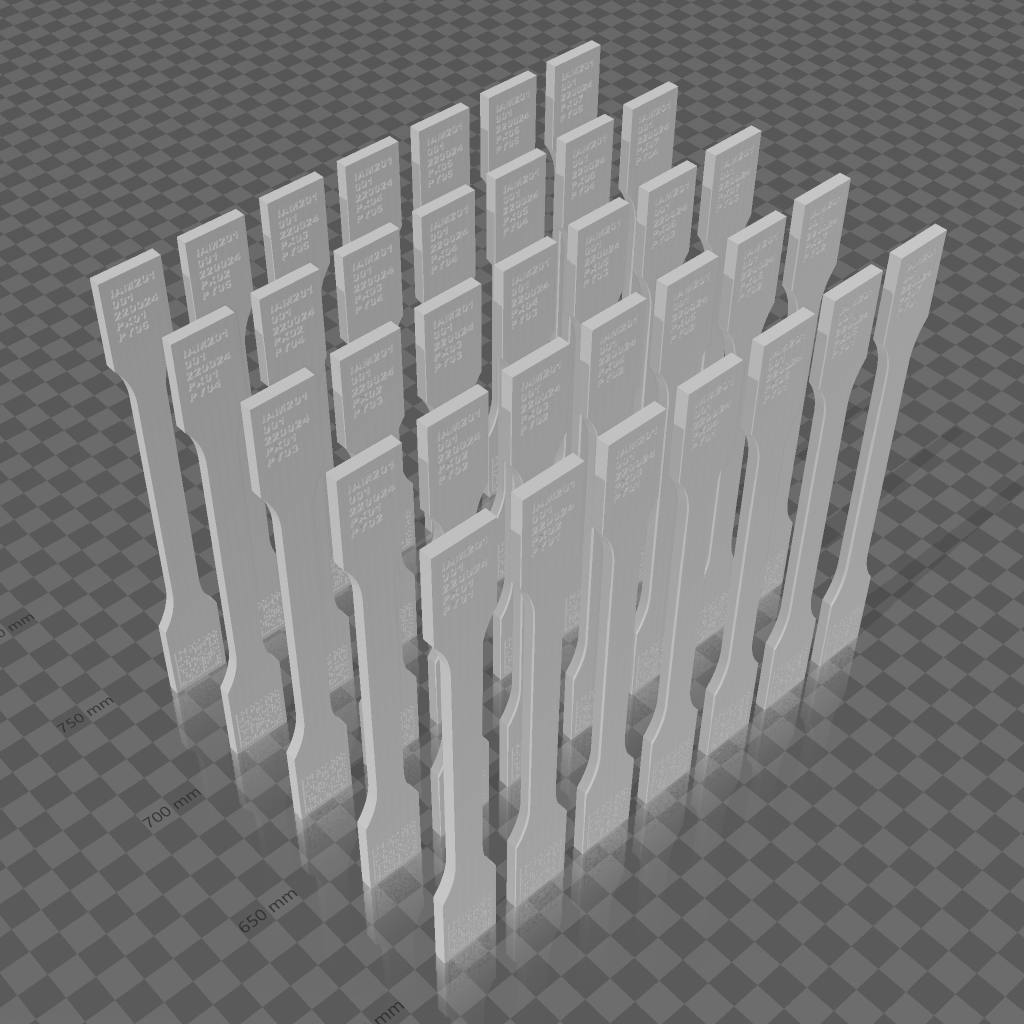

Provision of a segmented construction job with the desired number of segments and corresponding test specimens for your build space #+
Test specimen certificate and instructi
ons Shipping label incl. pick-up and shipping tracking
Execution of the tensile tests in an accredited laboratory
Test report from TÜV NORD as PDF

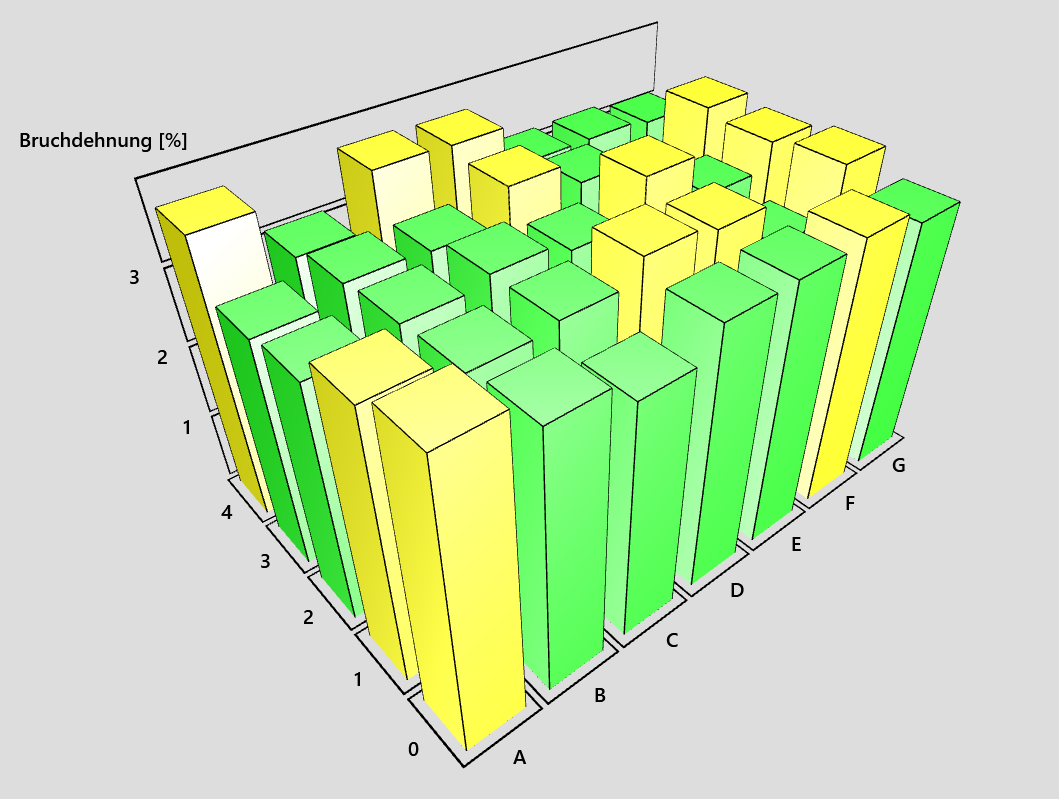

Heatmap to visualize the distribution of the test results within the build space (see example image)

For other options and special requests please contact us.

If you have any questions about additive manufacturing and corresponding TÜV NORD testing services, please do not hesitate to contact Jens Groffmann at any time:

Dipl.-Ing. Jens Groffmann
Project Manager Additive Manufacturing

Manufacturing Technology Northern Germany
TÜV NORD Systems GmbH & Co. KG
Große Bahnstr. 31
22525 Hamburg

Phone: +49 (0) 40 8557-1641
Mobile: +49 (0)160 888 11 44
Email: jgroffmann@tuev-nord.de
www.tuev-nord.com
